MBB G900 work platform lifting platform elevator lifting platform

You are purchasing an original construction lifting platform made in Germany!

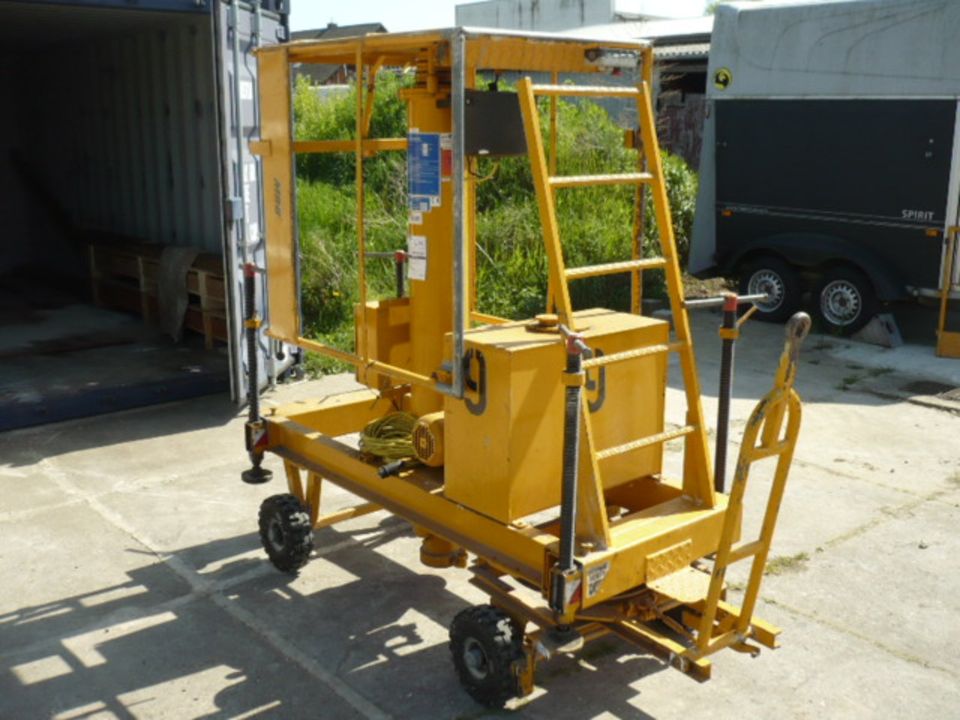

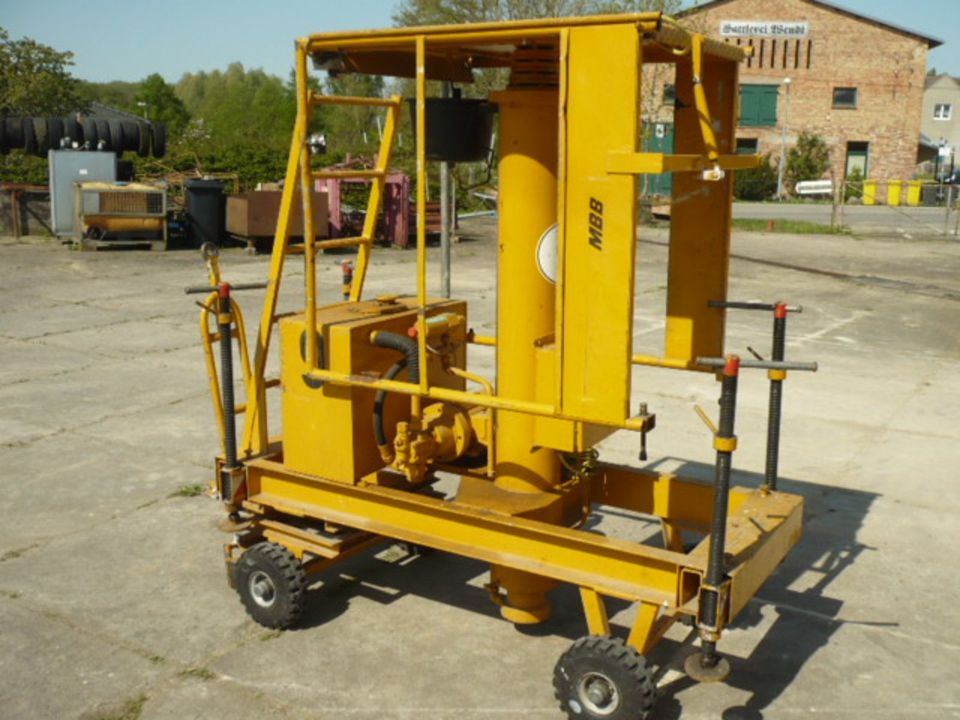

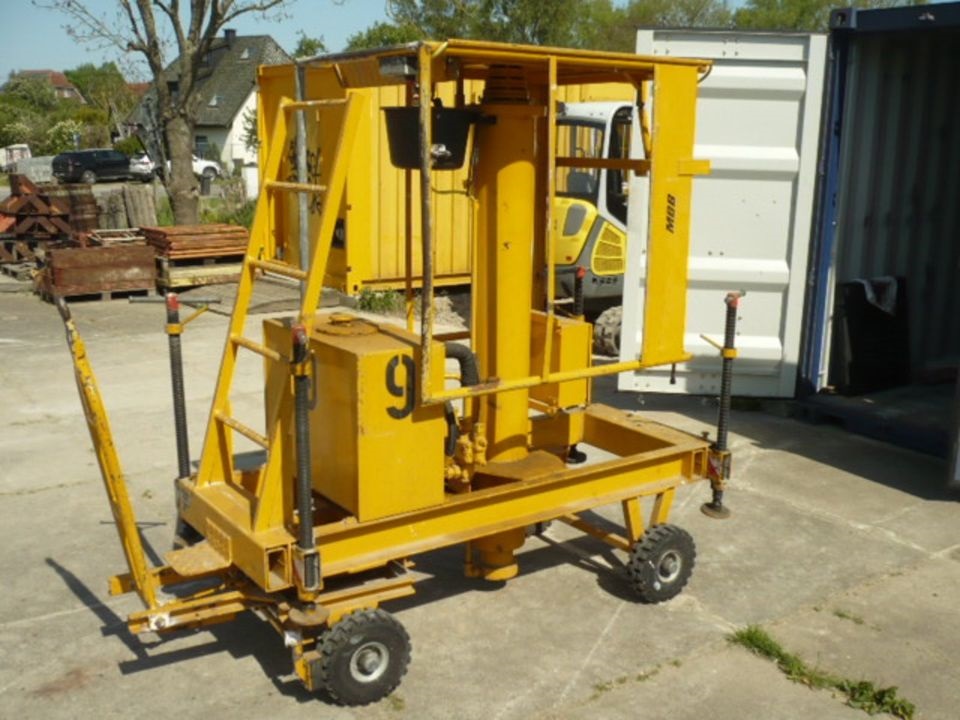

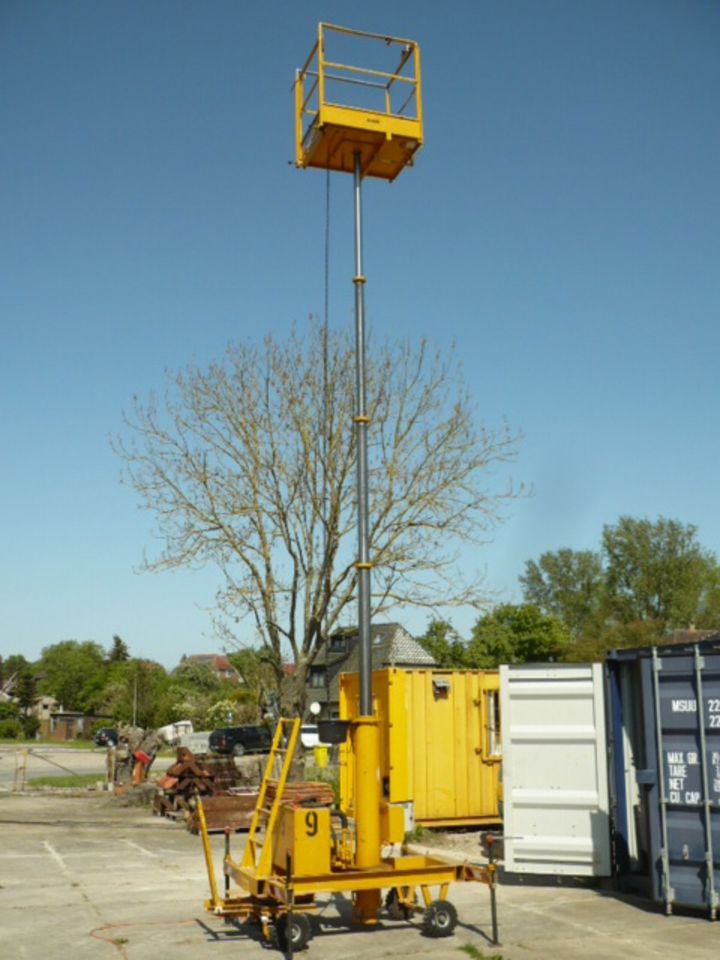

(The device was built to lift two people + 80 kg payload or a gross vehicle weight of 300 kg to heights that cannot normally be reached with ladders. The aerial work platform consists of a mobile substructure, two movable wheels, two fixed wheels on solid rubber tires, a work basket and a hydraulic control unit.)

Mobile 2-person construction lift!

(the platform can be used for facade or roof work, among other things)

Advantages

+ can be easily assembled and dismantled by two people
+ switches off automatically at the end of the mast when raised via a limit switch
+ switches off automatically in the lower position via a limit switch when lowered
+ easy access to the basket via a ladder
+ operation of the platform via a foot switch on the basket
+ stable support
+ easy maneuvering thanks to large wheels
+ fast raising and lowering speed
+ high working height
+ versatile
+ easy to handle
+ robust design
+ railing can be removed or folded
+ easy to transport (e.g. on a car transport trailer)

Equipment

+ foot switch for control from the basket
+ 4 hydraulic telescopic elements
+ 16m cable with light current plug
+ manual hand pump for operation without electricity
+ 2x 220V socket for machines and other work equipment
+ 4-point support
+ emergency lowering
+ UVV in accordance with VGB until 07/2005

Technical data

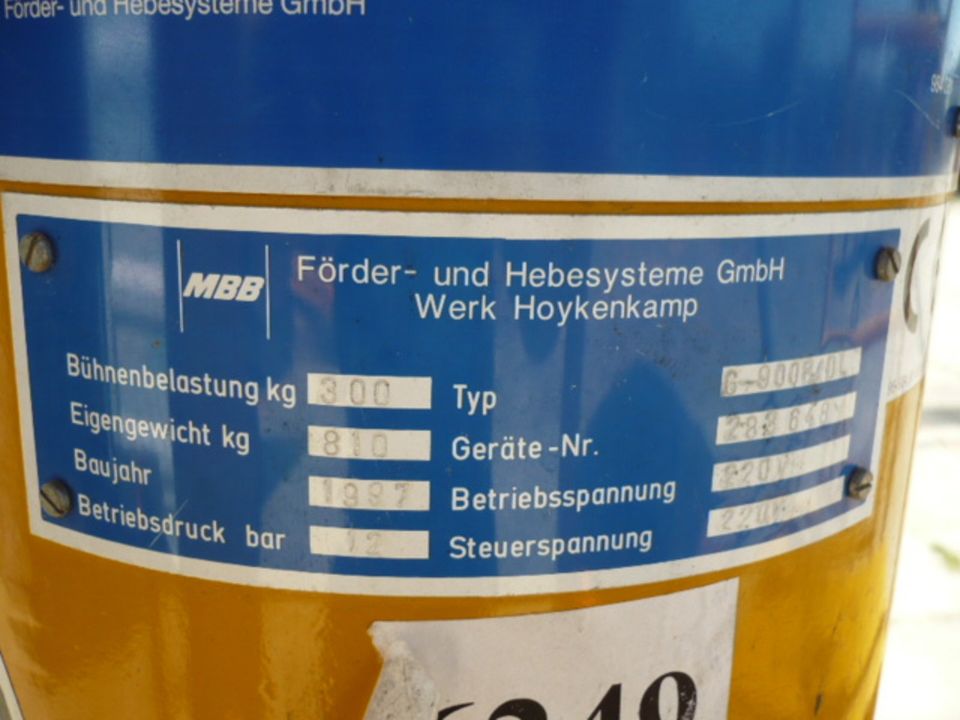

Manufacturer: MBB Förder- und Hebesysteme GmbH
Type: G 900 Giraffe
Payload: 300 kg (2 people)

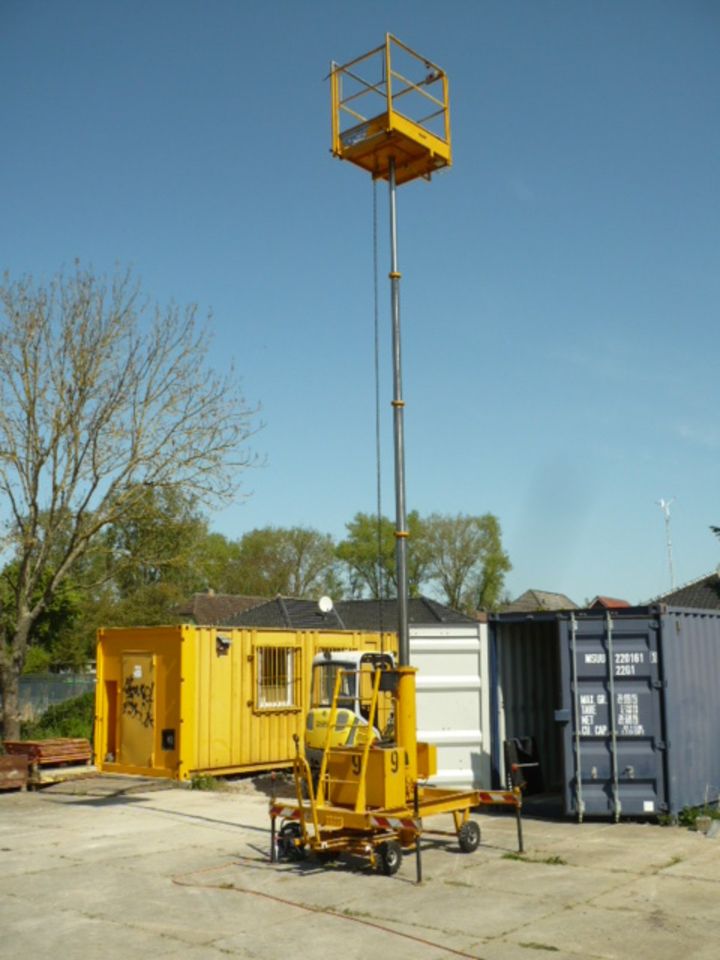

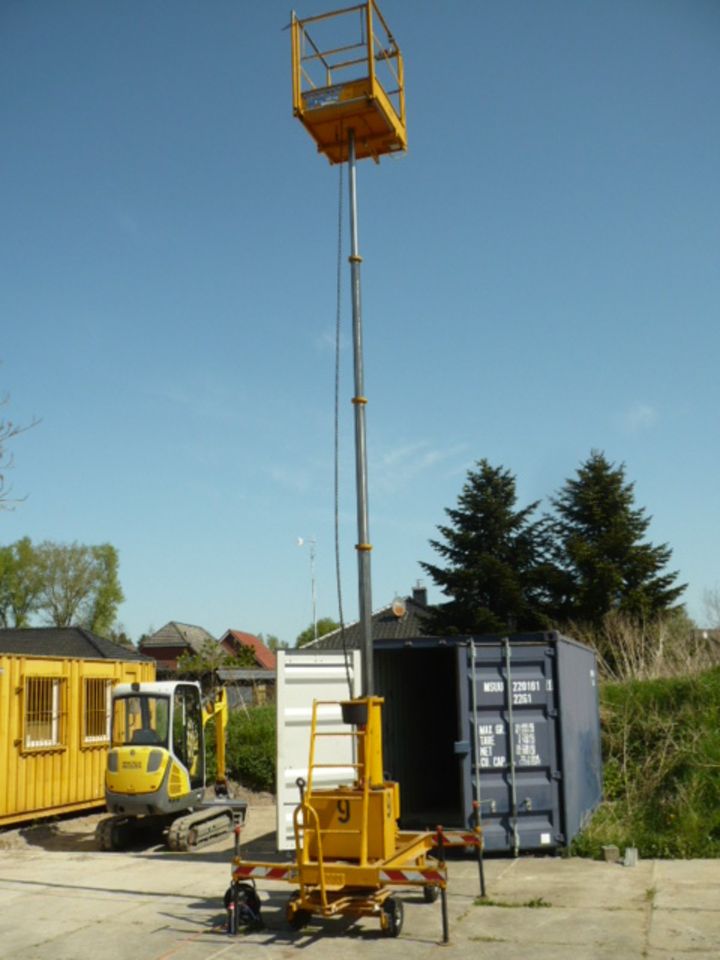

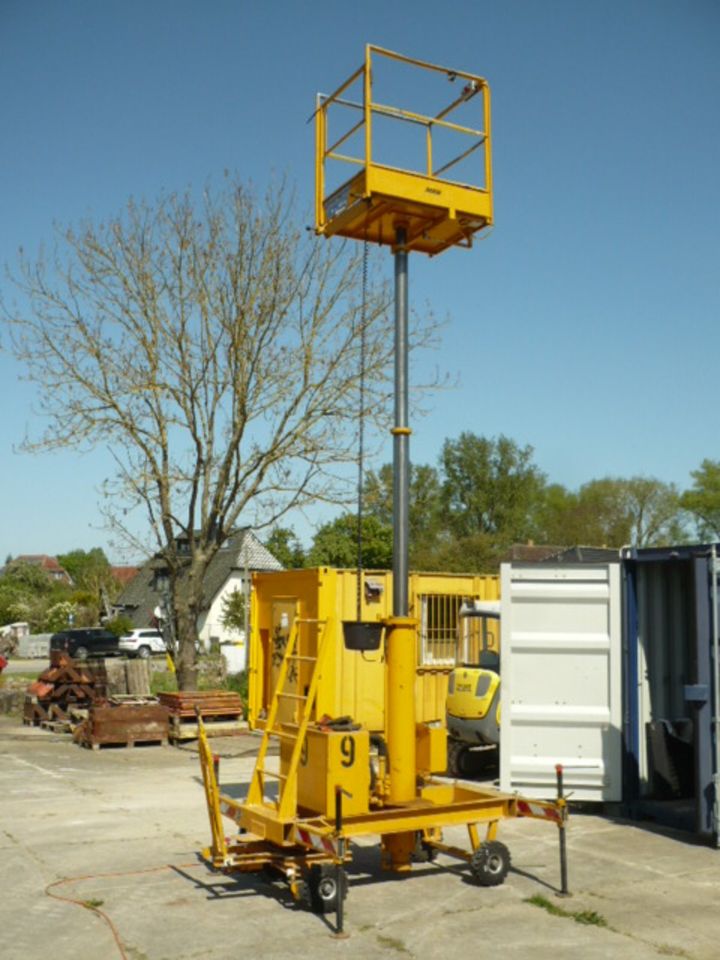

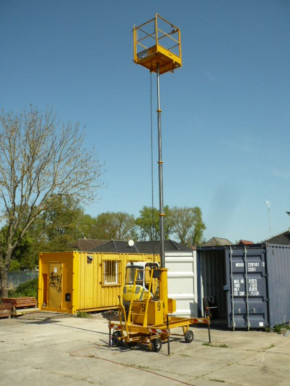

Max. platform height: 7.50 m
Working height: approx. 9 m
Own weight when assembled: 810 kg
Connection voltage: 230 V lumens
Motor power (two motors): 1.1 kW
Plug-in device: lumens plug
Total length: 2350 mm
Basket dimensions

-> Length: 1000 mm
-> Width: 800 mm
-> Railing height: 1100 mm
Track width / total width: 900 mm

The construction lifting platform (work platform) is fully functional, the technology has been partially renewed by a specialist workshop (e.g. telescopic seals, basket lock, paint, CEE 16A connection box).

The platform has always been in a dry place.

Viewing possible at any time (request by email)!

Email: info2needit (.....) aol.com or phone: +049(0)176/21193525

The sales price is subject to differential taxation (gross equals net). The invoice therefore only shows the shipping costs including VAT.

Shipping options: forwarding agent, self-collection
