Product.Nr.: 156047370852

189,00 EUR
incl. 19 % VAT

  • Available, enough stock Available, enough stock
  • delivery time 1-2 days

product description

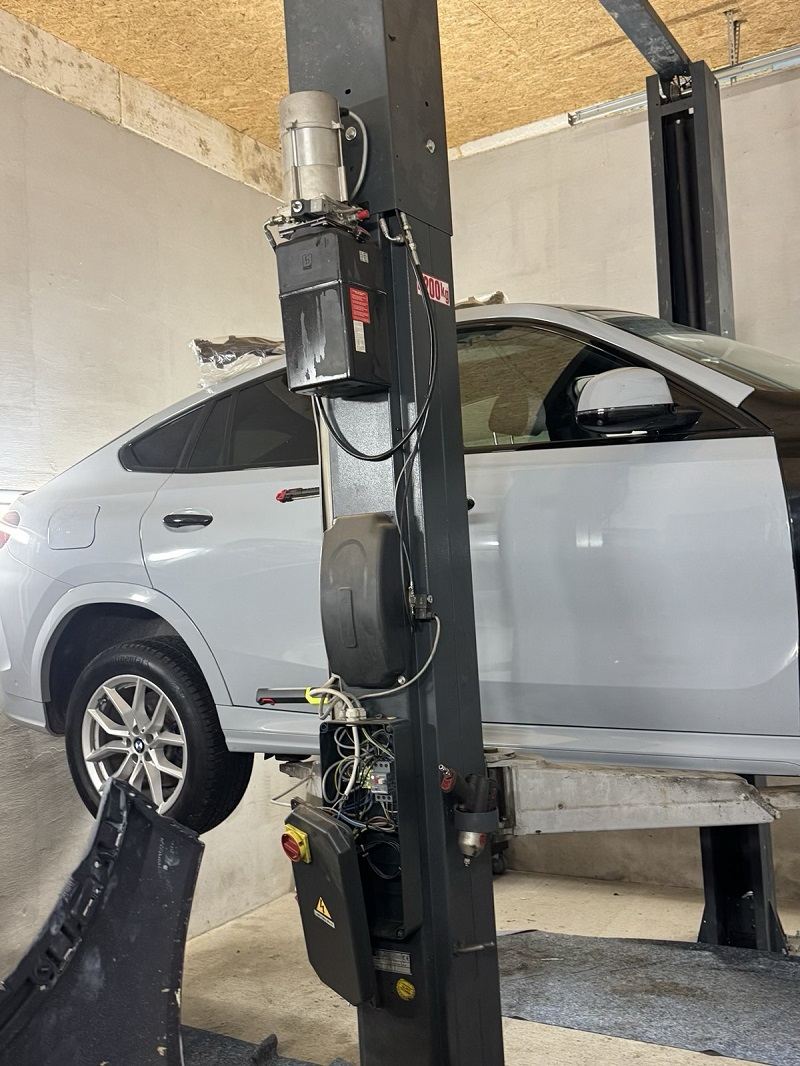

1x Phase converter new version from year of manufacture 2023 (up & down switch) for Ravaglioli 2-post lifts, including type KPH370 42K / LIK, KPX 32-35.

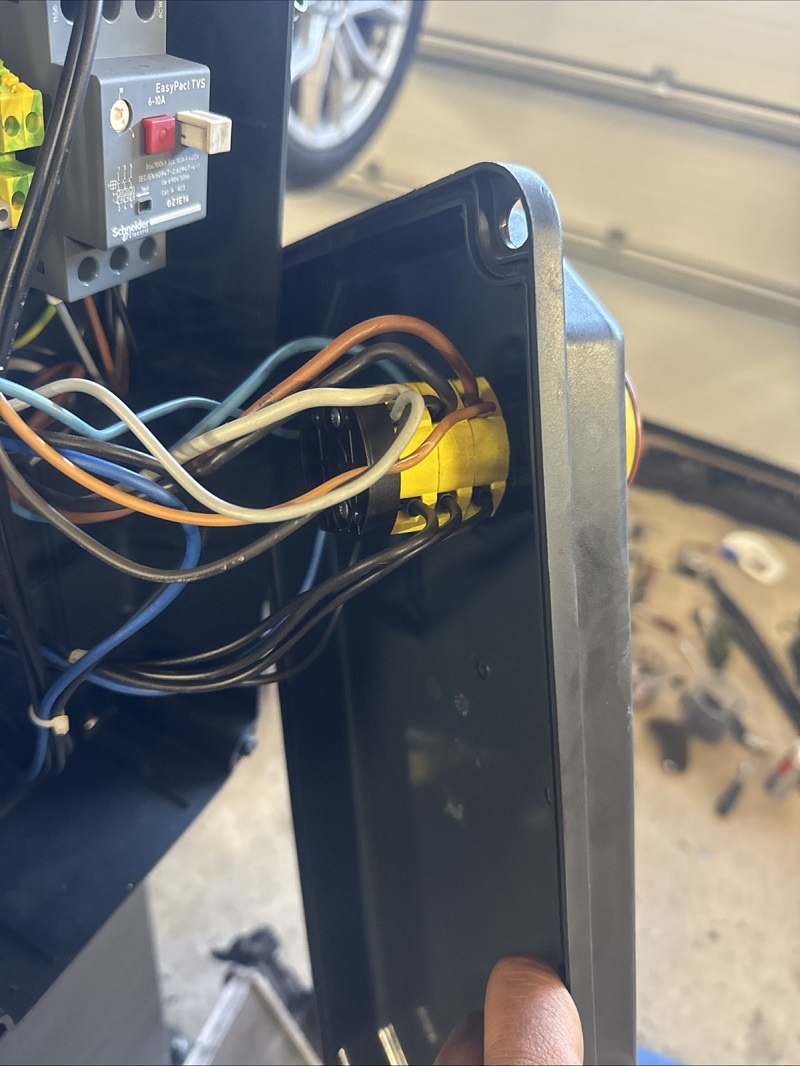

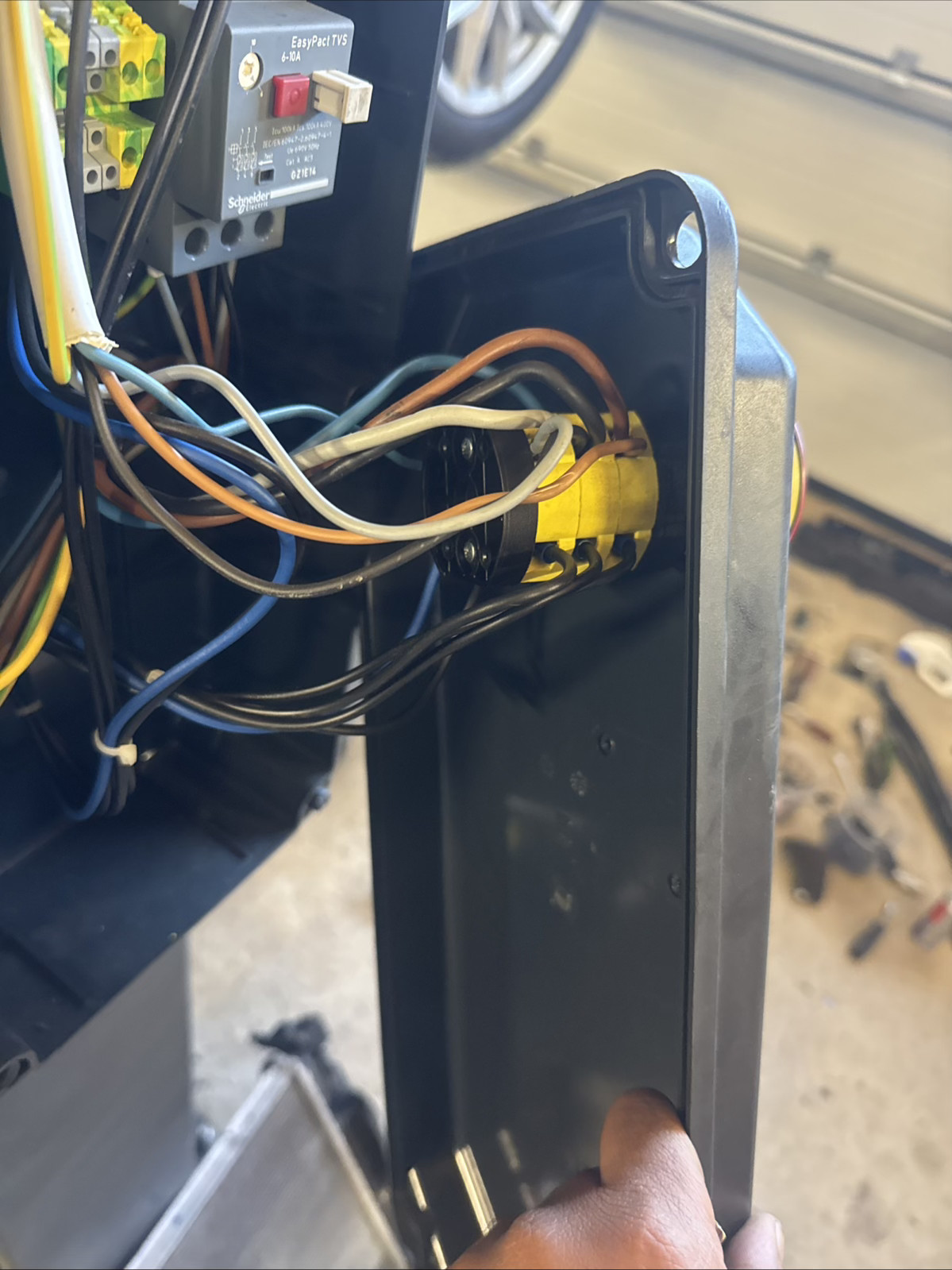

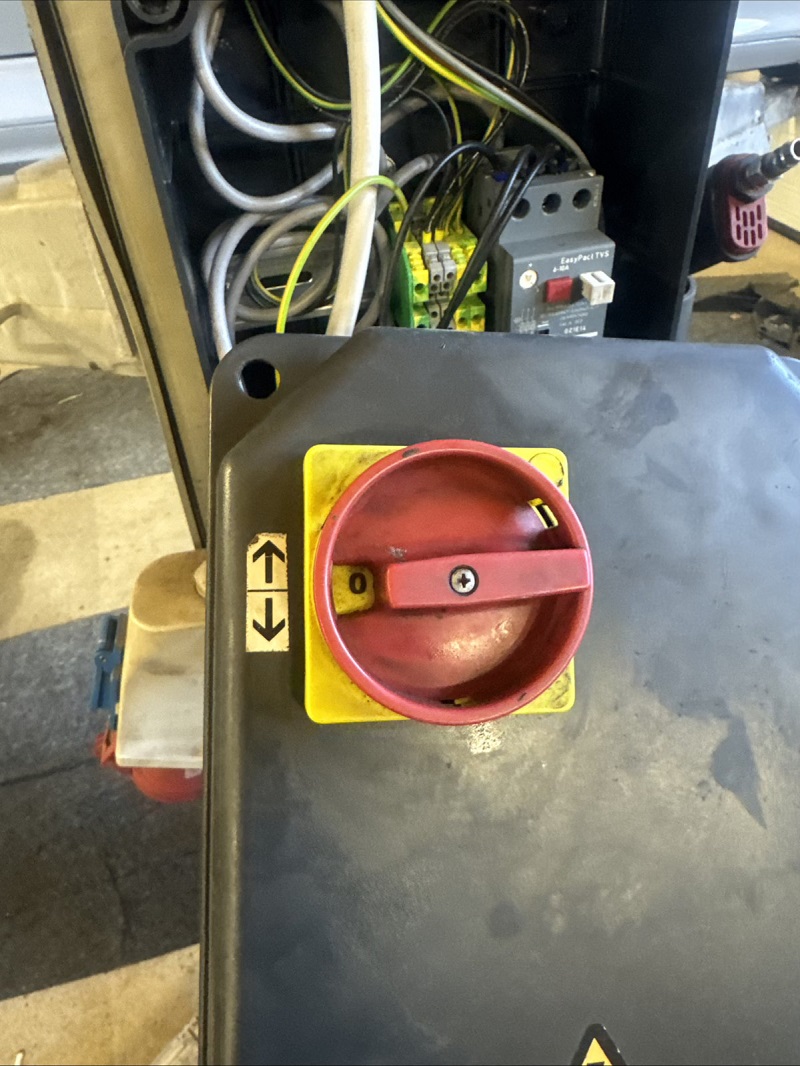

You are purchasing One unused, fully functional Giovenzana cam switch (reversing switch) made in Germany.

Technical data on the nameplate: EN/IEC 60947-3

AC-21A AC 22A A

AC-2 3A 7.5kW

AC-3 5.5kW

20A 690V 3 AC - IP65 Ue 50Hz

The case is made of hard plastic

Dimensions: Length 63mm (cam housing), width 44mm, height 48mm.

Other parts available for purchase in our shop by clicking on the appropriate Shop Category. After you put the product to the cart, you can purchase additional products in our online shop. We also answer questions via email: admin@awt-shop.de or phone: +49(0)176/21193525 and +49(0)38295/774067.
